Brass Camlock Coupling Camlock Quick Coupler with Male Adapter X Female Thread, China Camlock Manufacturers

Brass Camlock Coupling Camlock Quick Coupler with Male Adapter X Female Thread, China Camlock Manufacturers

Connection

Thread, Female, Male

Surface Treatment

Without Treatment

H.S

7307290000

Type

a, B, C, D, E, F, DC, Dp

Series

050, 075, 100, 200, 250, 300, 400, 500, 600

Transport Package

Carton and Pallet

Specification

1/2"-6", a, b, c, d, e, f, dc, dp

Trademark

oem

Origin

China

HS Code

73072900

Production Capacity

100000/Year

Product Detail

Customized Camlock Coupling

Camlocks are often referred to as Cam and Groove Couplings.

This is because they are engineeres with grooves that allow the vari- ous styles to fit together creating a tight seal.

Their simple structure and easy operation make them very popular.

Camlocks are connected by simply opening the coupler arms and inserting the adaptor into the coupler.

As the arms are pushed down to the sides,the two connectors are forced tightly together creating the bonded seal on an internal gasket.

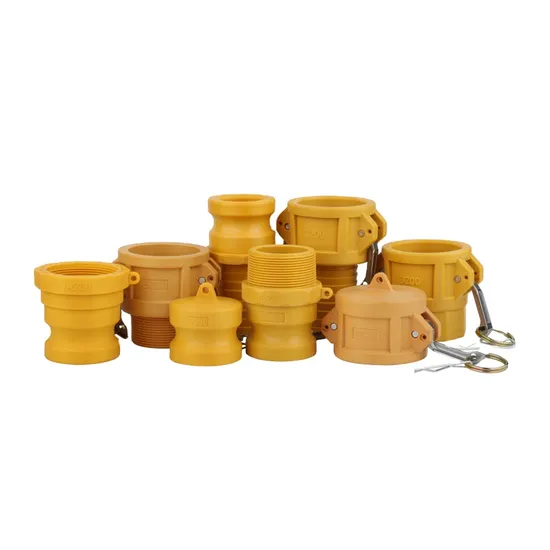

Camlocks come in a variety kf materials:stainless steel,aluminum,brass,polypropylene,nylon.

Features

1.Handles are made of stainless steel AISI 304 as a standard.

2.Camlock are capable of transporting liquids,solids and gases,except liquid gas and steam.

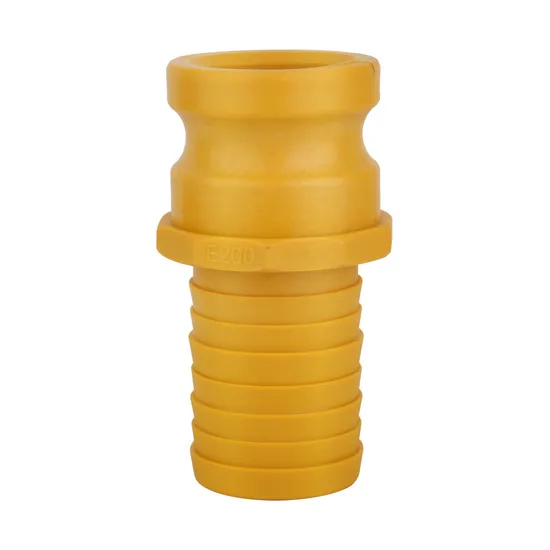

3.Coupling with multi-serrated hose shank & collar are available on customer's request.

Size

Stainless steel:1/2" to 6"

Aluminum:1/2" to 6"

Brass:1/2" to 6"

PP:1/2" to 4"

Nylon:1/2" to 4"

body:

stainless steel 304 316

Material

1.Stainless steel AlSI316/AISI304 by investment casting

2.Aluminium by gravity casting

3.Brass CW614N by forging

4.Polypropylene

5.Nylon

Standard

1.MIL A-A-59326 Cam&Groove couplings are made in compliance with A-A-59326(old version called MIL-C-27487)specification.

2.EN14420-7(DIN2828) The European standard EN 14420-7:2004replaces DIN 2828,witch was applied to cam&groove couplings maunfactured to A-A-59326A.A flat thread seal has been added to the female threaded parts,and a smooth hose shank has been added for assembly with DIN 2817 safety clamps.

Gaskets Material:

NBR,EPDM,Silicon

Thread:

NPT, BSP(female BSPP & male BSPT) ,DIN2999

Specification:

MIL-C27487

Test pressure:

1/2" 150PSI(10.5bar)

3/4"-2" 250PSI(17.6bar) /p>

2-1/2" 225PSI(15.8bar)

3" 200PSI(14.8bar)

3"-4" 200PSI(14.8bar)

4"-6" 100PSI(7.4bar)

6" 150PSI(10.5bar)

Application:

oil,petroleum,chemical,water,gas

Certificates & Tests

Our Factory

FAQ

1.Are you a factory or a trading company?

We are both, we have our own factory and the trading company based on our factory.
2.Can the products print logo?

Yes, we do OEM& ODM orders.
3.How about the samples?

Samples are free and express charge is paid by the buyer.
4.How much about the mold?

Mold is free for you once details are confirmed
5.How about the payment term?

T/T. 30% advanced payment,70% balance before the shipment.
